Install
This is a step by step guide that will assist you in installing Onyxia.
First you'll need a Kubernetes cluster. If you have one already you can skip this section.
Provisioning a cluster on AWS, GCP or Azure
Test on your machine
Pick one of the three and follow the guide.
Deploy an ingress controller on your cluster:
kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.2.0/deploy/static/provider/aws/deploy.yaml
Let's assume you own the domain name my-domain.net, for the rest of the guide you should replace my-domain.net by a domain you actually own.
Now you need to get the external address of your cluster, run the command
kubectl get services -n ingress-nginx
and write down the
External IP assigned to the LoadBalancer.Depending on the cloud provider you are using it can be an IPv4, an IPv6 or a domain. On AWS for example, it will be a domain like xxx.elb.eu-west-1.amazonaws.com.
If you see
<pending>, wait a few seconds and try again.Once you have the address, create the following DNS records:
onyxia.my-domain.net CNAME xxx.elb.eu-west-1.amazonaws.com.
*.lab.my-domain.net CNAME xxx.elb.eu-west-1.amazonaws.com.
If the address you got was an IPv4 (
x.x.x.x), create a A record instead of a CNAME.If the address you got was ans IPv6 (
y:y:y:y:y:y:y:y), create a AAAA record.https://onyxia.my-domain.net will be the URL for your instance of Onyxia. The URL of the services created by Onyxia are going to look like: https://<something>.lab.my-domain.net
You can customise "onyxia" and "lab" to your liking, for example you could chose datalab.my-domain.net and *.kub.my-domain.net.
In this section we will obtain a TLS certificate issued by LetsEncrypt using the certbot commend line tool then get our ingress controller to use it.
If you are already familiar with
certbot you're probably used to run it on a remote host via SSH. In this case you are expected to run it on your own machine, we'll use the DNS chalenge instead of the HTTP chalenge.brew install certbot #On Mac, lookup how to install certbot for your OS
#Because we need a wildcard certificate we have to complete the DNS callange.
sudo certbot certonly --manual --preferred-challenges dns
# When asked for the domains you wish to optains a certificate for enter:
# onyxia.my-domain.net *.lab.my-domain.net
The obtained certificate needs to be renewed every three month.
To avoid the burden of having to remember to re-run the
certbot command periodically you can setup cert-manager and configure a DNS01 challenge provider on your cluster but that's out of scope for Onyxia.Now we want to create a Kubernetes secret containing our newly obtained certificate:
DOMAIN=my-domain.net
sudo kubectl create secret tls onyxia-tls \
-n ingress-nginx \
--key /etc/letsencrypt/live/onyxia.$DOMAIN/privkey.pem \
--cert /etc/letsencrypt/live/onyxia.$DOMAIN/fullchain.pem
Lastly, we want to tell our ingress controller to use this TLS certificate, to do so run:
kubectl edit deployment ingress-nginx-controller -n ingress-nginx

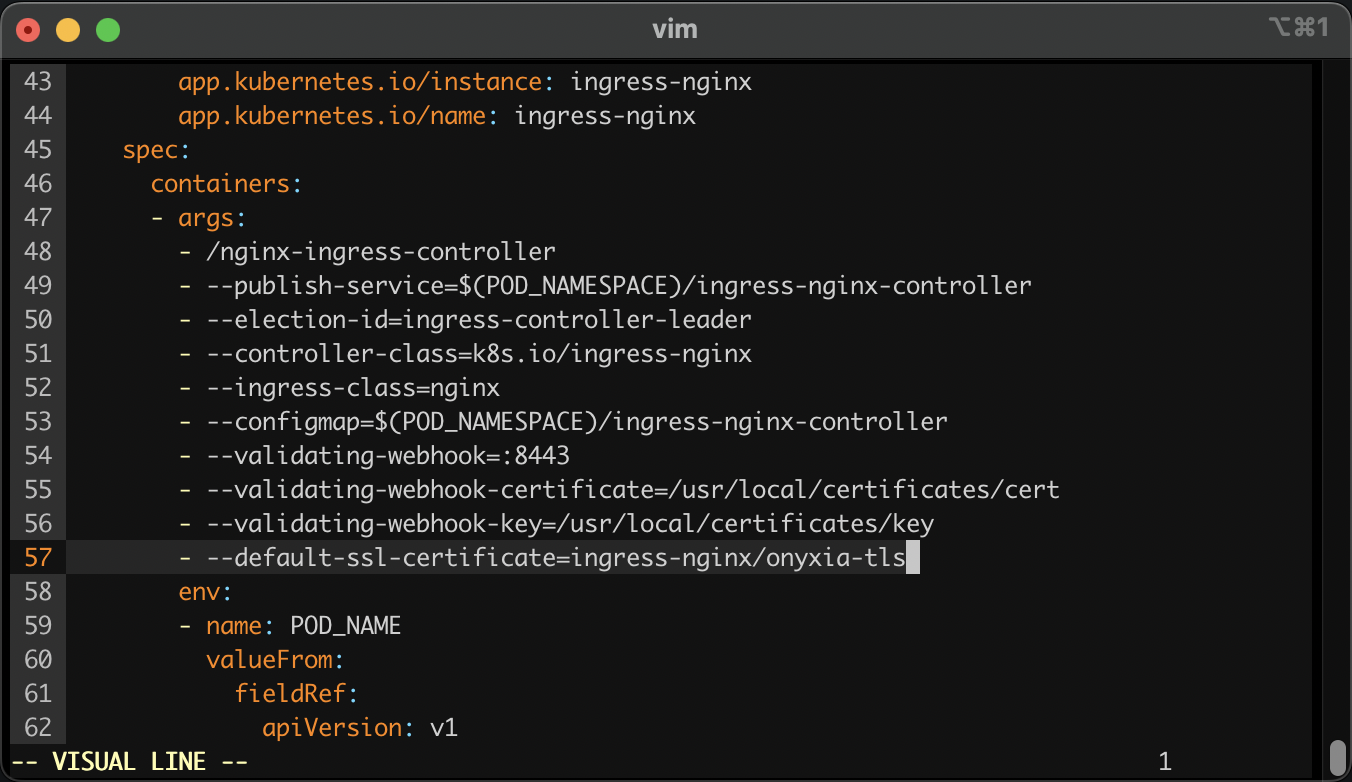

This command will open your configured text editor, go to line
56 and add: - --default-ssl-certificate=ingress-nginx/onyxia-tls

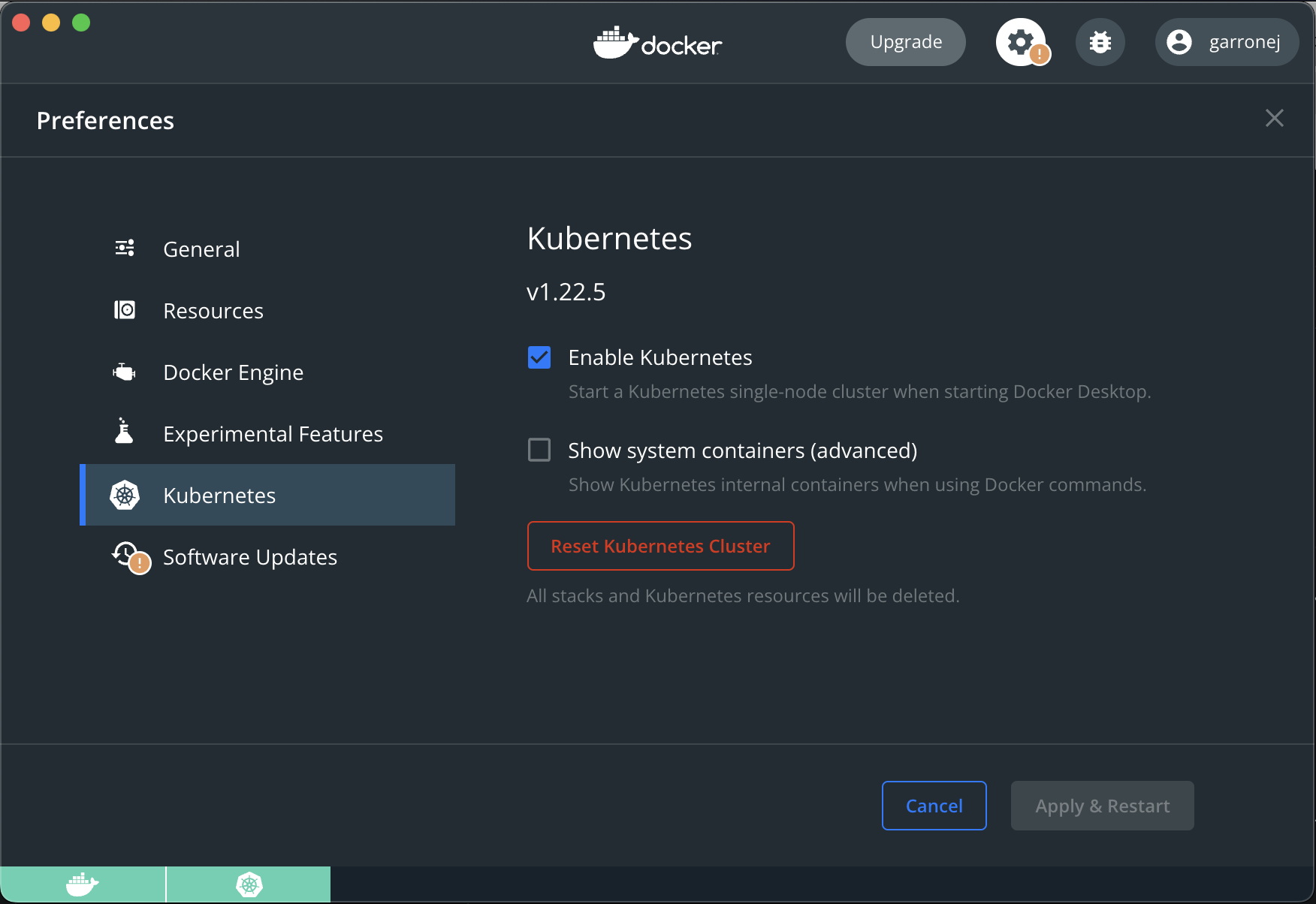

Enable Kubernetes in Docker desktop
You'll need to forward the TCP ports 80 and 443 to your local machine. It's done from the administration panel of your domestic internet Box. If you're on a corporate network, no luck for you I'm afraid.
Let's assume you own the domain name my-domain.net, for the rest of the guide you should replace my-domain.net by a domain you actually own.
onyxia.my-domain.net A <YOUR_IP>
*.lab.my-domain.net A <YOUR_IP>
If you have DDNS domain you can create
CNAME instead example:onyxia.my-domain.net CNAME jhon-doe-home.ddns.net.
*.lab.my-domain.net CNAME jhon-doe-home.ddnc.net.
https://onyxia.my-domain.net will be the URL for your instance of Onyxia.
The URL of the services created by Onyxia are going to look like: https://xxx.lab.my-domain.net
You can customise "onyxia" and "lab" to your liking, for example you could chose datalab.my-domain.net and *.kub.my-domain.net.
In this section we will obtain a TLS certificate issued by LetsEncrypt using the certbot commend line tool.
brew install certbot #On Mac, lookup how to install certbot for your OS
# Because we need a wildcard certificate we have to complete the DNS callange.
sudo certbot certonly --manual --preferred-challenges dns
# When asked for the domains you wish to optains a certificate for enter:
# onyxia.my-domain.net *.lab.my-domain.net
The obtained certificate needs to be renewed every three month.
To avoid the burden of having to remember to re-run the
certbot command periodically you can setup cert-manager and configure a DNS01 challenge provider on your cluster but that's out of scope for Onyxia.Now we want to create a Kubernetes secret containing our newly obtained certificate:
kubectl create namespace ingress-nginx
DOMAIN=my-domain.net
sudo kubectl create secret tls onyxia-tls \
-n ingress-nginx \
--key /etc/letsencrypt/live/onyxia.$DOMAIN/privkey.pem \
--cert /etc/letsencrypt/live/onyxia.$DOMAIN/fullchain.pem
cat << EOF > ./ingress-nginx-values.yaml
controller:
extraArgs:
default-ssl-certificate: "ingress-nginx/onyxia-tls"
EOF
helm install ingress-nginx ingress-nginx \
--repo https://kubernetes.github.io/ingress-nginx \
--namespace ingress-nginx \
-f ./ingress-nginx-values.yaml
In this section we assume that:
- You have a Kubernetes cluster and
kubectlconfigured - onyxia.my-domain.net and *.lab.my-domain.net are pointing to your cluster's external address. my-domain.net being a domain that you own. You can customise "onyxia" and "lab" to your liking, for example you could chose datalab.my-domain.net and *.kub.my-domain.net.
- You have an ingress controller configured with a default TLS certificate for *.lab.my-domain.net and onyxia.my-domain.net.
This will be addressed in the near future.
Through out this guide we make as if everything was instantaneous. In reality if you are testing on a small cluster you will need to wait several minutes after hitting
helm install for the services to be ready.Use

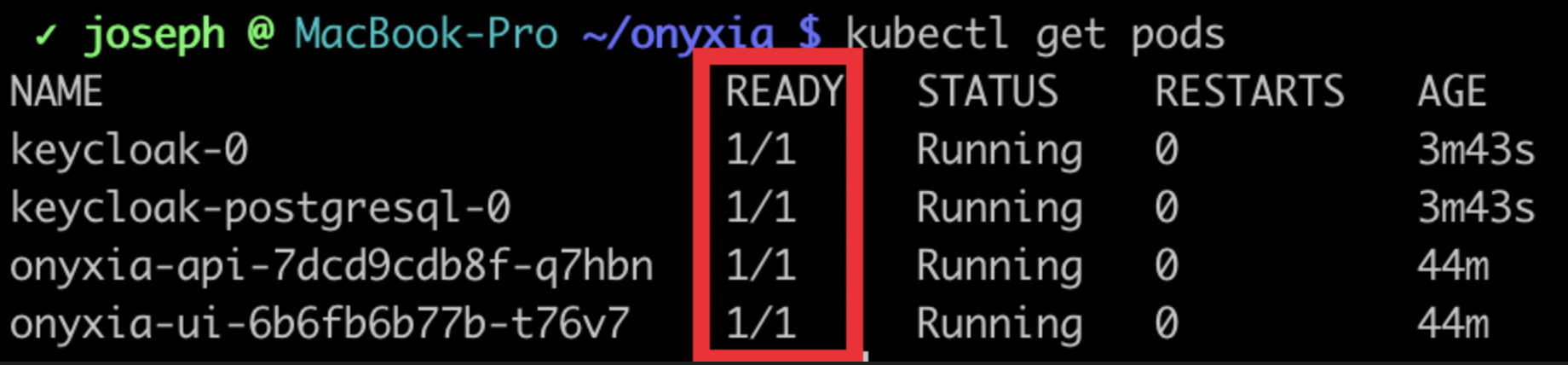

kubectl get pods to see if your pods are up and ready.
To make sure that your Kubernetes cluster is correctly configured let's deploy a test web app on it before deploying Onyxia.
DOMAIN=my-domain.net
cat << EOF > ./test-spa-values.yaml
ingress:
enabled: true
annotations:
kubernetes.io/ingress.class: nginx
hosts:
- host: test-spa.lab.$DOMAIN
image:
version: "0.4.3"
EOF
helm repo add etalab https://etalab.github.io/helm-charts
helm install test-spa etalab/keycloakify-demo-app -f test-spa-values.yaml
echo "Navigate to https://test-spa.lab.$DOMAIN, see the Hello World"
helm uninstall test-spa
helm repo add inseefrlab https://inseefrlab.github.io/helm-charts
DOMAIN=my-domain.net
cat << EOF > ./onyxia-values.yaml
ingress:
enabled: true
annotations:
kubernetes.io/ingress.class: nginx
hosts:
- host: onyxia.$DOMAIN
api:
env:
security.cors.allowed_origins: "http://localhost:3000"
regions:
[
{
"id":"demo",
"name":"Demo",
"description":"This is a demo region, feel free to try Onyxia !",
"services":{
"type":"KUBERNETES",
"singleNamespace":true,
"namespacePrefix":"user-",
"usernamePrefix":"oidc-",
"groupNamespacePrefix":"projet-",
"groupPrefix":"oidc-",
"authenticationMode":"admin",
"expose":{
"domain":"lab.$DOMAIN"
},
"monitoring":{
"URLPattern":"todo"
},
"cloudshell":{
"catalogId":"inseefrlab-helm-charts-datascience",
"packageName":"cloudshell"
},
"initScript":"https://inseefrlab.github.io/onyxia/onyxia-init.sh"
},
"data":{
"S3":{
"URL":"todo",
"monitoring":{
"URLPattern":"todo"
}
}
},
"auth":{
"type":"openidconnect"
},
"location":{
"lat":48.8164,
"long":2.3174,
"name":"Montrouge (France)"
}
}
]
EOF
helm install onyxia inseefrlab/onyxia -f onyxia-values.yaml
You can now access
https://onyxia.my-domain.net and start services. Congratulations! 🥳At the moment there is no authentication process, everyone can access our platform and and start services.
Let's setup Keycloak to enable users to create account and login to our Onyxia.
If you already have a Keycloak server it is up to you to pick from this guide what is rellevent to you.
Main takeway is that you probably want to load the Onyxia custom Keycloak theme and enable
-Dkeycloak.profile=preview in order to be able to enforce that usernames are well formatted and define an accept list of email domains allowed to create account on your Onyxia instance.That out of the way, note that you can configure onyxia-web to integrate with your existing Keycloak server, you just need to set some dedicated environment variable in the
values.yaml of the onyxia helm chart. Example: ui:
env:
# Available env are documented here: https://github.com/InseeFrLab/onyxia-web/blob/main/.env
KEYCLOAK_URL: https://auth.lab.my-domain.net/auth
KEYCLOAK_CLIENT_ID: onyxia
KEYCLOAK_REALM: datalab
JWT_EMAIL_CLAIM: email
JWT_FAMILY_NAME_CLAIM: family_name
JWT_FIRST_NAME_CLAIM: given_name
JWT_USERNAME_CLAIM: preferred_username
JWT_LOCALE_CLAIM: locale
helm repo add codecentric https://codecentric.github.io/helm-charts
DOMAIN=my-domain.net
POSTGRESQL_PASSWORD=xxxxx #Replace by a strong password, you will never need it.
# Credentials for logging to https://auth.lab.$DOMAIN/auth
KEYCLOAK_USER=admin
KEYCLOAK_PASSWORD=yyyyyy
cat << EOF > ./keycloak-values.yaml
image:
# We use the legacy variant of the image until codecentric update it's helm chart
tag: "18.0.2-legacy"
replicas: 1
extraInitContainers: |
- name: realm-ext-provider
image: curlimages/curl
imagePullPolicy: IfNotPresent
command:
- sh
args:
- -c
- |
# There is a custom theme published alongside every onyxia-web release
# The version of the Keycloak theme and the version of onyxia-web don't need
# to match but you should update the theme from time to time.
# https://github.com/InseeFrLab/onyxia-web/releases
curl -L -f -S -o /extensions/onyxia-web.jar https://github.com/InseeFrLab/onyxia-web/releases/download/v0.56.6/standalone-keycloak-theme.jar
volumeMounts:
- name: extensions
mountPath: /extensions
extraVolumeMounts: |
- name: extensions
mountPath: /opt/jboss/keycloak/standalone/deployments
extraVolumes: |
- name: extensions
emptyDir: {}
extraEnv: |
- name: KEYCLOAK_USER
value: $KEYCLOAK_USER
- name: KEYCLOAK_PASSWORD
value: $KEYCLOAK_PASSWORD
- name: JGROUPS_DISCOVERY_PROTOCOL
value: kubernetes.KUBE_PING
- name: KUBERNETES_NAMESPACE
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.namespace
- name: KEYCLOAK_STATISTICS
value: "true"
- name: CACHE_OWNERS_COUNT
value: "2"
- name: CACHE_OWNERS_AUTH_SESSIONS_COUNT
value: "2"
- name: PROXY_ADDRESS_FORWARDING
value: "true"
- name: JAVA_OPTS
value: >-
-Dkeycloak.profile=preview -XX:+UseContainerSupport -XX:MaxRAMPercentage=50.0 -Djava.net.preferIPv4Stack=true -Djava.awt.headless=true
ingress:
enabled: true
servicePort: http
annotations:
kubernetes.io/ingress.class: nginx
## Resolve HTTP 502 error using ingress-nginx:
## See https://www.ibm.com/support/pages/502-error-ingress-keycloak-response
nginx.ingress.kubernetes.io/proxy-buffer-size: 128k
rules:
- host: "auth.lab.$DOMAIN"
paths:
- path: /
pathType: Prefix
tls:
- hosts:
- auth.lab.$DOMAIN
postgresql:
postgresqlPassword: $POSTGRESQL_PASSWORD
EOF
helm install keycloak codecentric/keycloak -f keycloak-values.yaml
You can now login to the administration console of https://auth.lab.my-domain.net and login using the credentials you have defined with
KEYCLOAK_USER and KEYCLOAK_PASSWORD.- 1.Create a realm called "datalab" (or something else), go to Realm settings
- 1.On the tab General
- 1.User Profile Enabled: On
- 2.On the tab login
- 1.User registration: On
- 2.Forgot password: On
- 3.Remember me: On
- 3.On the tab email, we give an example with **** AWS SES, if you don't have a SMTP server at hand you can skip this by going to Authentication (on the left panel) -> Tab Required Actions -> Uncheck "set as default action" Verify Email. Be aware that with email verification disable, anyone will be able to sign up to your service.
- 1.From: [email protected]
- 2.Host: email-smtp.us-east-2.amazonaws.com
- 3.Port: 465
- 4.Authentication: enabled
- 5.Username: **************
- 6.Password: ***************************************
- 7.When clicking "save" you'll be asked for a test email, you have to provide one that correspond to a pre-existing user or you will get a silent error and the credentials won't be saved.
- 4.On the tab Themes
- 1.Login theme: onyxia-web (you can also select the login theme on a per client basis)
- 2.Email theme: onyxia-web
- 5.On the tab Localization
- 1.Internationalization: Enabled
- 2.Supported locales: <Select the languages you wish to support>
- 2.Create a client called "onyxia"
- 1.Root URL: https://onyxia.my-domain.net/
- 2.Valid redirect URIs: https://onyxia.my-domain.net/*
- 3.Web origins: *
- 4.Login theme: onyxia-web
- 3.In Authentication (on the left panel) -> Tab Required Actions enable and set as default action Therms and Conditions.
Now you want to ensure that the username chosen by your users complies with Onyxia requirement (only alphanumerical characters) and define a list of email domain allowed to register to your service.
Go to Realm Settings (on the left panel) -> Tab User Profile (this tab shows up only if User Profile is enabled in the General tab and you can enable user profile only if you have started Keycloak with
-Dkeycloak.profile=preview) -> JSON Editor.Now you can edit the file as suggested in the following DIFF snippet. Be mindful that in this example we only allow emails @gmail.com and @hotmail.com to register you want to edit that.
{
"attributes": [
{
"name": "username",
"displayName": "${username}",
"validations": {
"length": {
"min": 3,
"max": 255
},
+ "pattern": {
+ "error-message": "${alphanumericalCharsOnly}",
+ "pattern": "^[a-zA-Z0-9]*$"
+ },
"username-prohibited-characters": {}
}
},
{
"name": "email",
"displayName": "${email}",
"validations": {
"email": {},
+ "pattern": {
+ "pattern": "^[^@][email protected]([^.]+\\.)*((gmail\\.com)|(hotmail\\.com))$"
+ },
"length": {
"max": 255
}
}
},
{
"name": "firstName",
"displayName": "${firstName}",
"required": {
"roles": [
"user"
]
},
"permissions": {
"view": [
"admin",
"user"
],
"edit": [
"admin",
"user"
]
},
"validations": {
"length": {
"max": 255
},
"person-name-prohibited-characters": {}
}
},
{
"name": "lastName",
"displayName": "${lastName}",
"required": {
"roles": [
"user"
]
},
"permissions": {
"view": [
"admin",
"user"
],
"edit": [
"admin",
"user"
]
},
"validations": {
"length": {
"max": 255
},
"person-name-prohibited-characters": {}
}
}
]
}
Now our Keycloak server is fully configured we just need to update our Onyxia deployment to let it know about it.
Update the
onyxia-values.yaml file that you created previously, don't forget to replace all the occurence of my-domain.net by your actual domain.Don't forget as well to remplace the terms of services of the sspcloud by your own terms of services. CORS should be enabled on those
.md links (Access-Control-Allow-Origin: *).+serviceAccount:
+ clusterAdmin: true
ingress:
enabled: true
annotations:
kubernetes.io/ingress.class: nginx
hosts:
- host: onyxia.my-domain.net
ui:
+ env:
+ KEYCLOAK_REALM: datalab
+ KEYCLOAK_URL: https://auth.lab.my-domain.net/auth
+ TERMS_OF_SERVICES: |
+ { "en": "https://www.sspcloud.fr/tos_en.md", "fr": "https://www.sspcloud.fr/tos_fr.md" }
api:
env:
security.cors.allowed_origins: "http://localhost:3000"
+ authentication.mode: openidconnect
+ keycloak.realm: datalab
+ keycloak.auth-server-url: https://auth.lab.my-domain.net/auth
regions:
[
{
"id":"demo",
"name":"Demo",
"description":"This is a demo region, feel free to try Onyxia !",
"services":{
"type":"KUBERNETES",
- "singleNamespace": true,
+ "singleNamespace": false,
"namespacePrefix":"user-",
"usernamePrefix":"oidc-",
"groupNamespacePrefix":"projet-",
"groupPrefix":"oidc-",
"authenticationMode":"admin",
"expose":{
"domain":"lab.my-domain.net"
},
"monitoring":{
"URLPattern":"todo"
},
"cloudshell":{
"catalogId":"inseefrlab-helm-charts-datascience",
"packageName":"cloudshell"
},
"initScript":"https://inseefrlab.github.io/onyxia/onyxia-init.sh"
},
"data":{
"S3":{
"URL":"todo",
"monitoring":{
"URLPattern":"todo"
}
}
},
"auth":{
"type":"openidconnect"
},
"location":{
"lat":48.8164,
"long":2.3174,
"name":"Montrouge (France)"
}
}
]
Now that you have updated
onyxia-values.yaml restart onyxia-web with the new configuration.helm upgrade onyxia inseefrlab/onyxia -f onyxia-values.yaml
Now your users should be able to create account, log-in, and start services on their own Kubernetes namespace.
Onyxia-web use AWS Security Token Service API to get token and empowered user with storage features. We support any S3 storage compatible with this API.
Before configuring Minio, let's create a new client for keycloak
Create a client called "minio"
- 1.Root URL: https://minio.lab.my-domain.net/
- 2.Valid redirect URIs: https://minio.lab.my-domain.net/*
- 3.Web origins: *
Minio
We recommand you to follow minio documentation for this installation and you must activate OIDC authentification. We will use the official helm in this tutorial.
helm repo add minio https://charts.min.io/
DOMAIN=my-domain.net
cat << EOF > ./minio-values.yaml
ingress:
enabled: true
annotations:
kubernetes.io/ingress.class: nginx
rules:
- host: "minio.lab.$DOMAIN"
paths:
- path: /
pathType: Prefix
tls:
- hosts:
- minio.lab.$DOMAIN
consoleIngress:
enabled: true
annotations:
kubernetes.io/ingress.class: nginx
rules:
- host: "minio-console.lab.$DOMAIN"
paths:
- path: /
pathType: Prefix
tls:
- hosts:
- minio-console.lab.$DOMAIN
oidc:
enabled: true
configUrl: "https://auth.lab.$DOMAIN/.well-known/openid-configuration"
clientId: "minio"
clientSecret: ""
claimName: "policy"
scopes: "openid,profile,email"
redirectUri: "https://minio-console.lab.$DOMAIN/oauth_callback"
policies:
- name: stsonly
statements:
- resources:
- 'arn:aws:s3:::oidc-${jwt:preferred_username}'
- 'arn:aws:s3:::oidc-${jwt:preferred_username}/*'
actions:
- "s3:*"
EOF
helm install minio minio/minio -f minio-values.yaml
Minio is now deployed and is accessible on the console url.
Before configuring the onyxia region to create tokens we should go back to keycloak and create a new client to enable onyxia-web to request token for minio. This client is a little bit more complexe than other if you want to manage durations (here 7 days) and this client should have a claim name policy and with a value of stsonly according to our last deployment of minio. \
Create a client called "onyxia-minio"
- 1.Root URL: https://onyxia.my-domain.net/
- 2.Valid redirect URIs: https://onyxia.my-domain.net/*
- 3.Web origins: *
- 4.Advanced Settings 1. Access Token Lifespan : 7 days 2. Client Session Idle : 7 days 3. Client Session Max: 7 days
- 5.Mappers 1. Create 2. Hardcoded Claim 3. Token Claim Name : policy 4. Claim value : stsonly 5. name : policy
S3 storage is configured inside a region in Onyxia api. You have some options to configure this storage and let inform Onyxia web all needed informations how to generate those tokens : keycloak parameters to access storage API, duration of STS tokens, bucket name with a standard prefix and a claim in the user JWT token to generate a unique identifiant for this bucket name, whether Onyxia-web should try to to create this bucket silently or not. There is also options for projects. You should look all options for the version of your need on github
serviceAccount:
clusterAdmin: true
ingress:
enabled: true
annotations:
kubernetes.io/ingress.class: nginx
hosts:
- host: onyxia.my-domain.net
ui:
env:
KEYCLOAK_REALM: datalab
KEYCLOAK_URL: https://auth.lab.my-domain.net/auth
TERMS_OF_SERVICES: |
{ "en": "https://www.sspcloud.fr/tos_en.md", "fr": "https://www.sspcloud.fr/tos_fr.md" }
api:
env:
security.cors.allowed_origins: "http://localhost:3000"
authentication.mode: openidconnect
keycloak.realm: datalab
keycloak.auth-server-url: https://auth.lab.my-domain.net/auth
regions:
[
{
"id":"demo",
"name":"Demo",
"description":"This is a demo region, feel free to try Onyxia !",
"services":{
"type":"KUBERNETES",
"singleNamespace": false,
"namespacePrefix":"user-",
"usernamePrefix":"oidc-",
"groupNamespacePrefix":"projet-",
"groupPrefix":"oidc-",
"authenticationMode":"admin",
"expose":{
"domain":"lab.my-domain.net"
},
"monitoring":{
"URLPattern":"todo"
},
"cloudshell":{
"catalogId":"inseefrlab-helm-charts-datascience",
"packageName":"cloudshell"
},
"initScript":"https://inseefrlab.github.io/onyxia/onyxia-init.sh"
},
"data":{
"S3":{
- "URL":"todo",
+ "type": "minio",
+ "URL": "https://minio.my-domain.net",
+ "region": "us-east-1",
+ "bucketPrefix": "oidc-",
+ "groupBucketPrefix": "projet-",
+ "bucketClaim": "preferred_username",
+ "defaultDurationSeconds": 86400,
+ "keycloakParams":
+ {
+ "URL": "https://auth.lab.my-domain.net/auth",
+ "realm": "datalab",
+ "clientId": "onyxia-minio",
+ },
+ "acceptBucketCreation": true,
"monitoring":{
"URLPattern":"minio"
}
}
},
"auth":{
"type":"openidconnect"
},
"location":{
"lat":48.8164,
"long":2.3174,
"name":"Montrouge (France)"
}
}
]
helm upgrade onyxia inseefrlab/onyxia -f onyxia-values.yaml
Onyxia-web use vault as a storage for two kinds of secrets :
1. secrets or information generate by Onyxia to store differents values (ui preferences for example)
2. user secrets
Vault must be configured with JWT or OIDC authentification methods.
As vault need to be initialized with a master key, It can't be directly configured with all parameters such as oidc or access policies and roles. So first step we create a vault with dev mode (do not use this in production and do your initialization with any of the recommanded configuration : shamir, gcp, another vault)
helm repo add hashicorp https://helm.releases.hashicorp.com
DOMAIN=my-domain.net
cat << EOF > ./vault-values.yaml
server:
dev:
enabled: true
# Set VAULT_DEV_ROOT_TOKEN_ID value
devRootToken: "root"
ingress:
enabled: true
annotations:
kubernetes.io/ingress.class: nginx
hosts:
- host: "vault.lab.$DOMAIN"
tls:
- hosts:
- vault.lab.$DOMAIN
EOF
helm install vault hashicorp/vault -f vault-values.yaml
Create a client called "vault"
- 1.Root URL: https://vault.lab.my-domain.net/
- 2.Valid redirect URIs: https://vault.lab.my-domain.net/*
- 3.Web origins: *
Last modified 7d ago
