# Kubernetes First you'll need a Kubernetes cluster. If you have one already you can skip and directly go to [the Onyxia instalation section](https://docs.onyxia.sh/docs.onyxia.sh/v8/admin-doc/readme/gitops). {% tabs %} {% tab title="Provisioning a cluster on AWS, GCP or Azure" %} [Hashicorp](https://www.hashicorp.com/) maintains great tutorials for [terraforming](https://www.terraform.io/) Kubernetes clusters on [AWS](https://aws.amazon.com/what-is-aws/), [GCP](https://cloud.google.com/) or [Azure](https://acloudguru.com/videos/acg-fundamentals/what-is-microsoft-azure). Pick one of the three and follow the guide. You can stop after the [configure kubectl section](https://learn.hashicorp.com/tutorials/terraform/eks#configure-kubectl). {% embed url="" %} {% embed url="" %} {% embed url="" %} **Ingress controller** Let's install ingress-ngnix on our newly created cluster: {% hint style="warning" %} The following command is [for AWS](https://kubernetes.github.io/ingress-nginx/deploy/#aws). For GCP use [this command](https://kubernetes.github.io/ingress-nginx/deploy/#gce-gke). For Azure use [this command](https://kubernetes.github.io/ingress-nginx/deploy/#azure). {% endhint %} ```bash kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.2.0/deploy/static/provider/aws/deploy.yaml ``` **DNS** Let's assume you own the domain name **my-domain.net**, for the rest of the guide you should replace **my-domain.net** by a domain you actually own. Now you need to get the external address of your cluster, run the command ```bash kubectl get services -n ingress-nginx ``` and write down the `External IP` assigned to the `LoadBalancer`. Depending on the cloud provider you are using it can be an IPv4, an IPv6 or a domain. On AWS for example, it will be a domain like **xxx.elb.eu-west-1.amazonaws.com**. If you see ``, wait a few seconds and try again. Once you have the address, create the following DNS records: ```dns-zone-file datalab.my-domain.net CNAME xxx.elb.eu-west-1.amazonaws.com. *.lab.my-domain.net CNAME xxx.elb.eu-west-1.amazonaws.com. ``` If the address you got was an IPv4 (`x.x.x.x`), create a `A` record instead of a CNAME. If the address you got was ans IPv6 (`y:y:y:y:y:y:y:y`), create a `AAAA` record. **** will be the URL for your instance of Onyxia. The URL of the services created by Onyxia are going to look like: **https\://\.lab.my-domain.net** {% hint style="info" %} You can customise "**datalab**" and "**lab**" to your liking, for example you could chose **onyxia.my-domain.net** and **\*.kub.my-domain.net**. {% endhint %} **SSL** In this section we will obtain a TLS certificate issued by [LetsEncrypt](https://letsencrypt.org/) using the [certbot](https://certbot.eff.org/) commend line tool then get our ingress controller to use it. If you are already familiar with `certbot` you're probably used to run it on a remote host via SSH. In this case you are expected to run it on your own machine, we'll use the DNS chalenge instead of the HTTP chalenge. ```bash brew install certbot #On Mac, lookup how to install certbot for your OS #Because we need a wildcard certificate we have to complete the DNS callange. sudo certbot certonly --manual --preferred-challenges dns # When asked for the domains you wish to optains a certificate for enter: # datalab.my-domain.net *.lab.my-domain.net ``` {% hint style="info" %} The obtained certificate needs to be renewed every three month. To avoid the burden of having to remember to re-run the `certbot` command periodically you can setup [cert-manager](https://cert-manager.io/) and configure a [DNS01 challenge provider](https://cert-manager.io/docs/configuration/acme/dns01/) on your cluster but that's out of scope for Onyxia. You may need to delegate your DNS Servers to one of the supported [DNS service provider](https://cert-manager.io/docs/configuration/acme/dns01/#supported-dns01-providers). {% endhint %} Now we want to create a Kubernetes secret containing our newly obtained certificate: ```bash DOMAIN=my-domain.net sudo kubectl create secret tls onyxia-tls \ -n ingress-nginx \ --key /etc/letsencrypt/live/datalab.$DOMAIN/privkey.pem \ --cert /etc/letsencrypt/live/datalab.$DOMAIN/fullchain.pem ``` Lastly, we want to tell our ingress controller to use this TLS certificate, to do so run: ```bash kubectl edit deployment ingress-nginx-controller -n ingress-nginx ``` This command will open your configured text editor, go to containers -> args and add: ``` - --default-ssl-certificate=ingress-nginx/onyxia-tls - --watch-ingress-without-class ```

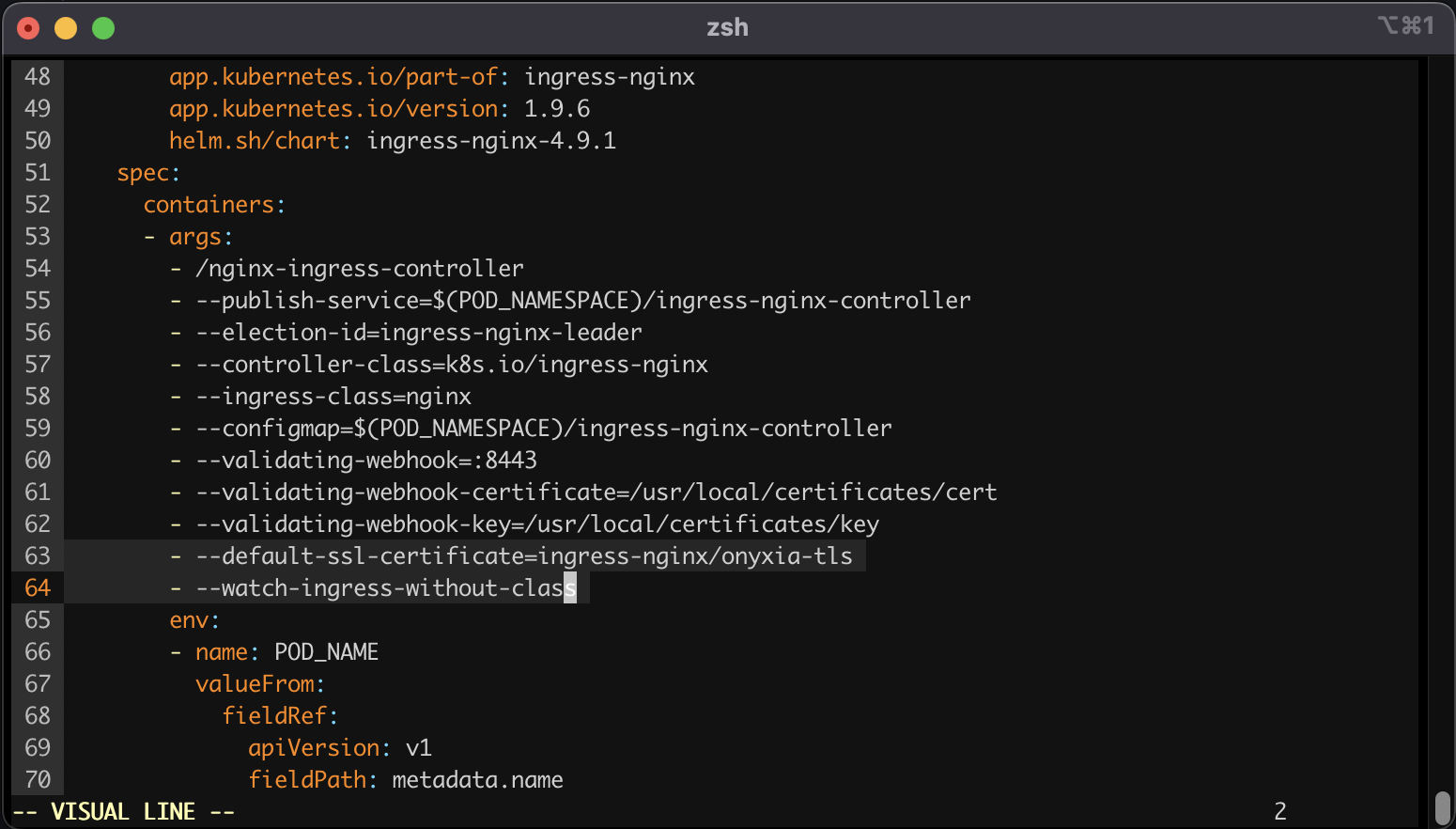

Save and quit. Done :tada:\ We installed the ingress-nginx in our cluster, (but note that any other ingress controller could have been used as well). The configuration was adjusted to handle all ingress objects, even those lacking a specified class, and to employ our SSL certificate for our wildcard certificate. This strategy facilitated an effortless SSL termination, managed by the reverse proxy for both **\*.lab.my-domain.net** and **datalab.my-domain.net**, thus removing any additional SSL configuration concerns. {% endtab %} {% tab title="Test on your machine" %} If you are on a Mac or Window computer you can install [Docker desktop](https://www.docker.com/products/docker-desktop/) then enable Kubernetes.

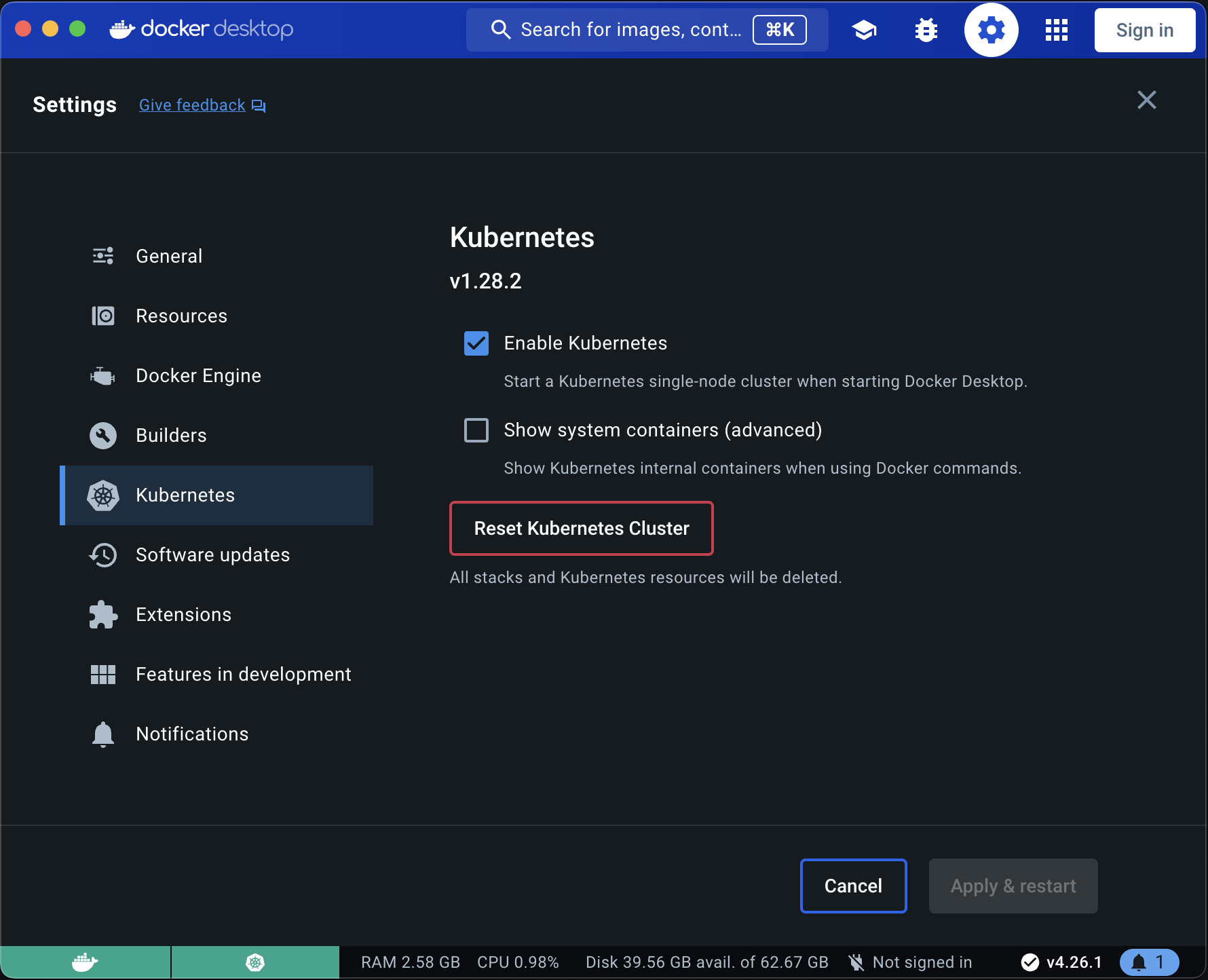

Enabling Kubernetes in the Docker desktop App

{% hint style="warning" %} WARNING: If you are folowing this installating guide on an Apple Sillicon Mac, be aware that many of the services that comes by default with Onyxia like Jupyter RStudio and VSCode won't run because we do not yet compile our datacience stack for the ARM64 architecture. \ If you would like to see this change please [sumit an issue about it](https://github.com/InseeFrLab/helm-charts-interactive-services/issues). {% endhint %} {% hint style="info" %} Docker desktop isn't available on Linux, you can use [Kind](https://kind.sigs.k8s.io/) instead. {% endhint %} **Port Forwarding** You'll need to [forward the TCP ports 80 and 443 to your local machine](https://user-images.githubusercontent.com/6702424/174459930-23fb577c-11a2-49ef-a082-873f4139aca1.png). It's done from the administration panel of your domestic internet Box. If you're on a corporate network you'll have to [test onyxia on a remote Kubernetes cluster](#provisioning-a-cluster-on-aws-gcp-or-azure). **DNS** Let's assume you own the domain name **my-domain.net,** for the rest of the guide you should replace **my-domain.net** by a domain you actually own. Get [your internet box routable IP](http://monip.org/) and create the following DNS records: ```dns-zone-file datalab.my-domain.net A *.lab.my-domain.net A ``` {% hint style="success" %} If you have DDNS domain you can create `CNAME` instead example: ``` datalab.my-domain.net CNAME jhon-doe-home.ddns.net. *.lab.my-domain.net CNAME jhon-doe-home.ddnc.net. ``` {% endhint %} ****** will be the URL for your instance of Onyxia. The URL of the services created by Onyxia are going to look like: ****** {% hint style="info" %} You can customise "**datalab**" and "**lab**" to your liking, for example you could chose **onyxia.my-domain.net** and **\*.kub.my-domain.net**. {% endhint %} **SSL** In this section we will obtain a TLS certificate issued by [LetsEncrypt](https://letsencrypt.org/) using the [certbot](https://certbot.eff.org/) commend line tool. ```bash brew install certbot #On Mac, lookup how to install certbot for your OS # Because we need a wildcard certificate we have to complete the DNS callange. sudo certbot certonly --manual --preferred-challenges dns # When asked for the domains you wish to optains a certificate for enter: # datalab.my-domain.net *.lab.my-domain.net ``` {% hint style="info" %} The obtained certificate needs to be renewed every three month. To avoid the burden of having to remember to re-run the `certbot` command periodically you can setup [cert-manager](https://cert-manager.io/) and configure a [DNS01 challenge provider](https://cert-manager.io/docs/configuration/acme/dns01/) on your cluster but that's out of scope for Onyxia. You may need to delegate your DNS Servers to one of the supported [DNS service provider](https://cert-manager.io/docs/configuration/acme/dns01/#supported-dns01-providers). {% endhint %} Now we want to create a Kubernetes secret containing our newly obtained certificate: ```bash # First let's make sure we connect to our local Kube cluser kubectl config use-context docker-desktop kubectl create namespace ingress-nginx DOMAIN=my-domain.net sudo kubectl create secret tls onyxia-tls \ -n ingress-nginx \ --key /etc/letsencrypt/live/datalab.$DOMAIN/privkey.pem \ --cert /etc/letsencrypt/live/datalab.$DOMAIN/fullchain.pem ``` **Ingress controller** We will install ingress-nginx in our cluster, although any other ingress controller would be suitable as well. The configuration will be set up to handle all ingress objects, including those without a specified class, and to utilize our SSL certificate for our wildcard certificate. This approach ensures a straightforward SSL termination managed by the reverse proxy for both **\*.lab.my-domain.net** and **datalab.my-domain.net**, eliminating any further concerns regarding SSL setup. ```bash cat << EOF > ./ingress-nginx-values.yaml controller: extraArgs: default-ssl-certificate: "ingress-nginx/onyxia-tls" watchIngressWithoutClass: true EOF helm install ingress-nginx ingress-nginx \ --repo https://kubernetes.github.io/ingress-nginx \ --version 4.9.1 \ --namespace ingress-nginx \ -f ./ingress-nginx-values.yaml ``` {% endtab %} {% endtabs %} Now that we have a Kubernetes cluster ready to use let's levrage ArgoCD and GitOps practices to deploy and monitor the core services of our Onyxia Datalab. {% content-ref url="gitops" %} [gitops](https://docs.onyxia.sh/docs.onyxia.sh/v8/admin-doc/readme/gitops) {% endcontent-ref %}
